ABOUT

Reim Electronics Corp. has been providing a high quality product to the chlorination industry since 1992. Our company has thrived since its inception and has a distribution network that sells domestic and international. We are dedicated to producing a quality product, providing prompt delivery and our technical knowledge is exceptional.
Our corporation was founded by our president, Robert Reim. Bob has an extensive background in electronic design and production in both high volume commercial products and state of the art electronics for Department of Defense programs. He was able to utilize his experience to design a cost effective and reliable vacuum monitor, the VAC 1000. During the design stage he consulted with several scientists to help choose the latest integrated sensor with a method to protect the sensor from the harsh environment it will be measuring. It is the first complete electronic vacuum monitor on the market that is compatible with gaseous chlorine and other highly corrosive gases for the water treatment industry.
Our first product was the VAC 1000 vacuum monitor which set the standard for electronic vacuum monitoring for many years. The VAC 1100 was based on the VAC 1000 design but with a new power supply that takes a universal input voltage. Our newest product is the VAC 2000. This product has the same features as the VAC 1100 but uses a sealed stainless steel sensor which offers exceptional accuracy and reliability. Our technically advanced vacuum monitor has been recognized as the premier choice for vacuum monitoring requirements, with its ease of use and rugged packaging it is a sure fit in your vacuum process application.
VAC 2000
VACUUM MONITOR
The VAC 2000 vacuum monitor is a 100% electronic, full-featured monitoring system with a three digit, digital readout. The system utilizes the latest in integrated sensor technology that results in improved accuracy, reliability, versatility and chemical compatibility. All monitors come standard with an analog output for connection to local monitoring equipment.
The VAC 2000 vacuum monitor comes standard with an oil based protection device that allows direct contact with many gases and liquids, including chlorine and sulfur dioxide.
This unit has three alarm relays. One Low Alarm relay, one High Alarm relay and one Latch Alarm relay. All relays are general purpose NO/NC type. These relays give the end users many options on how to respond to an alarm condition. Some examples are turning on alarms, signaling a remote dialer to call a central station and shutting down pumps or control equipment. The VAC 2000 has a universal input voltage of 90-265 VAC. The enclosure has a NEMA 4X rating, with preformed knockouts and the entire unit measures only 7″ x 4.5″ x 3.5”

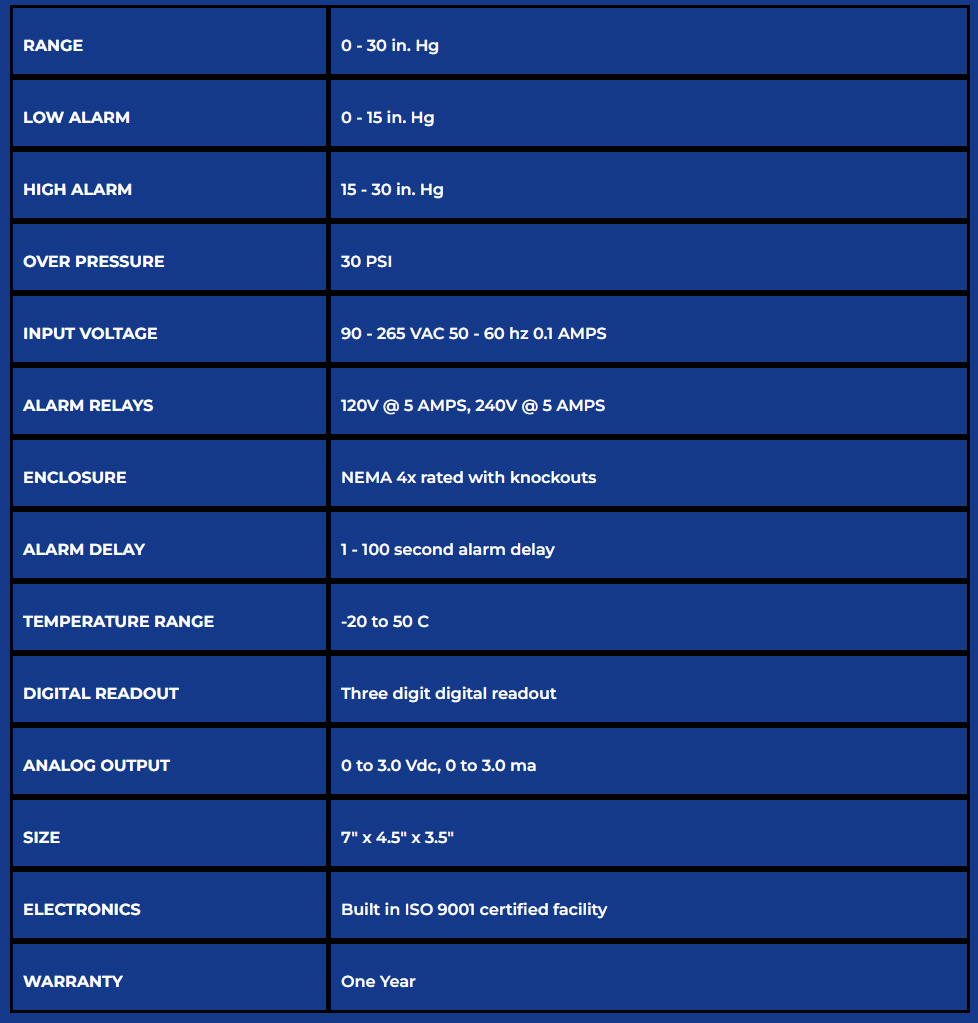

SPECIFICATIONS
FEATURES
-
FITTINGS:
Two water tight fittings for alarm and power wiring -
TRIP POINTS:
Independently High and Low Trip Points -
ALARM RELAY OUTPUTS:
One NO/NC High Alarm Relay
One NO/NC Low Alarm Relay
One NO/NC Latch Alarm Relay
-
DELAY TIMER:
Adjustable Delay Timer -
ALARM RESET SWITCH:
IP65 External Latch Alarm Reset Switch -
LED INDICATORS:
High Alarm
Low Alarm
Latch Alarm
